Panthere 2 - SOLD

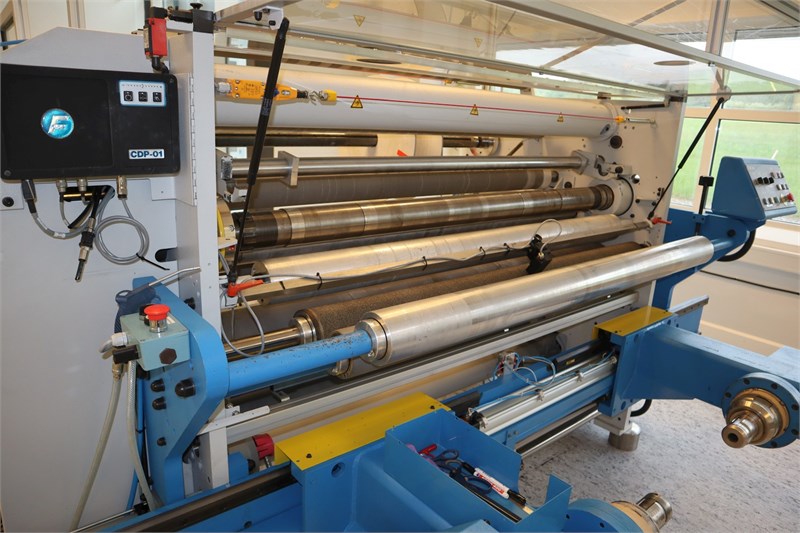

DCM Double Turret Slitter Rewinder, Panthere 2

  Lot # 1000
Produktbillede

Beskrivelse

OBS, this machine is not part of the Danfoss sale. It is located at Coloplast, Espergaerde.

New in                                                                                                2003

S/N                                                                                                      163.12031

Width:                                                                                                1600 mm

Maxi web width:                                                                              1650 mm

Unwinding diameter:                                                                     1000 mm

Maxi weight of mother roll:                                                          1000 kg

Maxi unwinding tension (ø 1000 mm):                                      400 N

Braking torque:                                                                                200 Nm

Rewinding diameter:                                                                      800 mm

Maxi weight of rewind roll:                                                           320 kg

Maxi weight of rewind roll (opening in cantilever):                250 kg

Maxi rewinding tension (ø 800 mm):                                          315 N

Rewinding torque:                                                                          125 Nm

Maxi Machine speed                                                                       450 m/min

Main electric power supply (to confirm)                                   3 x 400V 50Hz

Installed Power:                                                                               21 Kw

Wiring Cable Section:                                                                     3 x 16 mm2 + ground

Necessary air pressure net work:                                                7 bars dry

Air hose diameter                                                                            Ø 7 / 12 mm

Noice level:                                                                                       80 dBa

Temperature:                                                                                    between + 10 to + 40 degrees Celsius

Humidity (without condensate):                                                  30 up to 95 %



Machine viewed under power in May 2021. Working well.

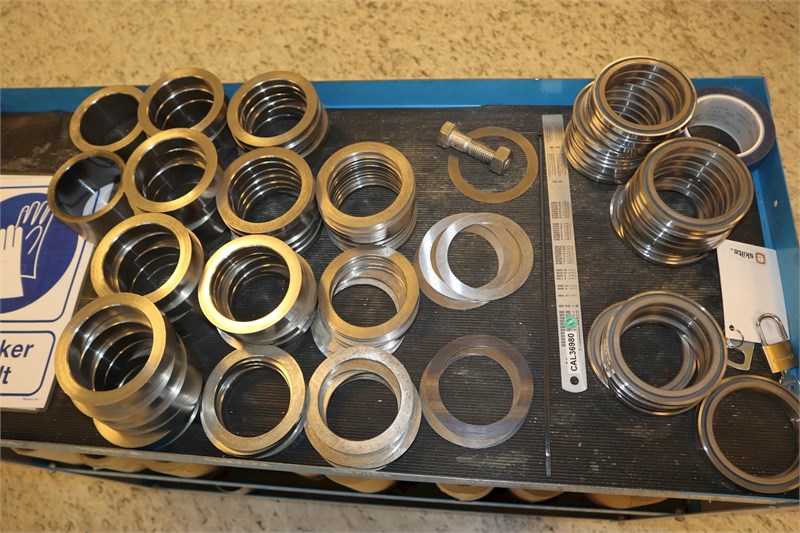

Including lots of tools and a tool cabinet with accessories and a trolley with tools etc. Adjustable decoiler setting. Fitted with Leuze electronic guard back and front.

Viewing and collection by appointment only.

Conditions of sale: As is and where is, Incoterms EXW, Coloplast, Espergaerde, Denmark. Pls. contact Jens Lynderup, Lynderup Group ApS, Tel.: +45 91551351



Detaljer
  • Stand Varen er testet af sælger - Ingen fejl observeret

  • Lot # 1000
  • System ID # 2123995
  • Slutdato
  • Start dato
  • 0 Bud
